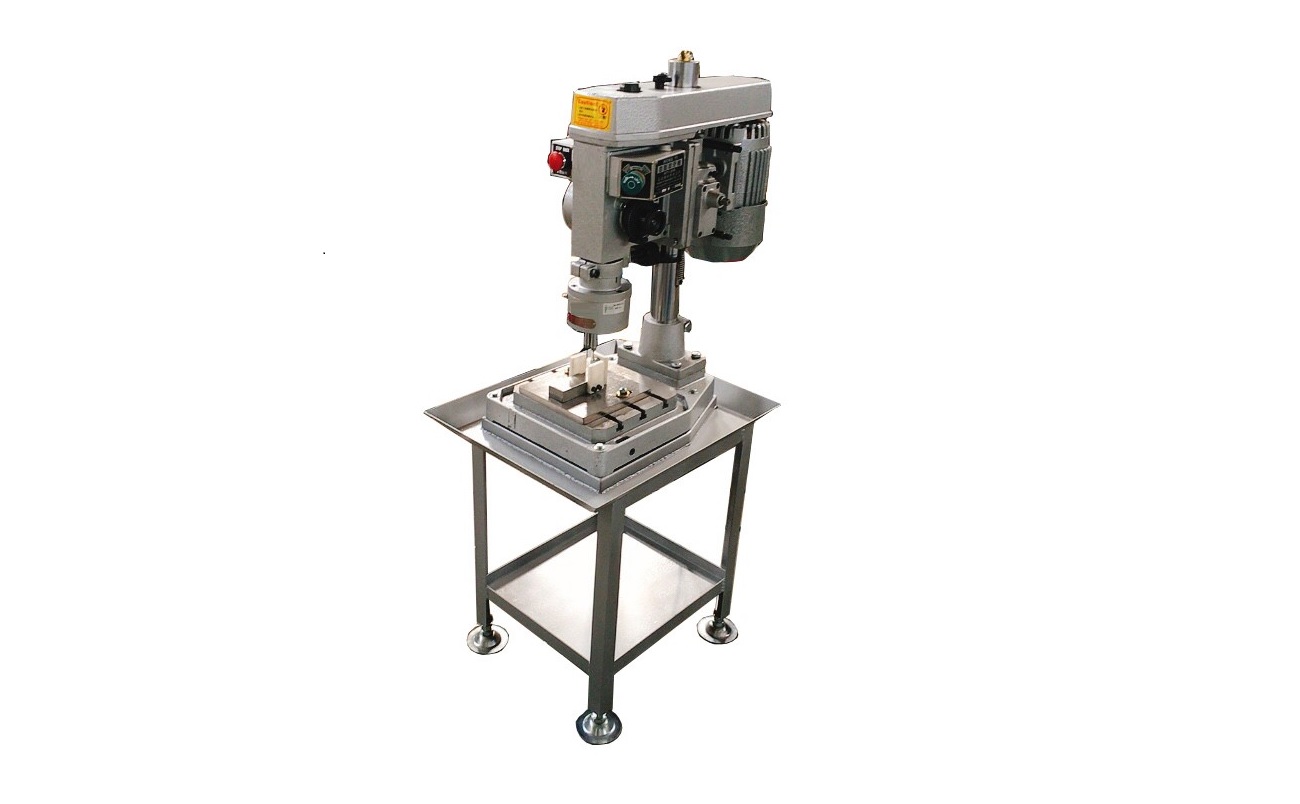

HT1-208 Gear Type Automatic Tapping Machine

Gear Type Automatic Tapping Machine Series

Change thread-pitch gear：Easy to change the thread-pitch gear and easy to operate as well. The gear-drive thread pitch reduces wear to a minimum. Equipped with safety stop device for upgrading operational safety.
Because one running is for each tapping thread, it can taps perfect thread’s rings to let the tap enlarge the using life time, the accuracy gets the standard of the gauge, automatic tapping and retracting, the workpiece won’t life, which does not require special hold-down to simplify jig.

Mechanical Features：

◎ Change thread-pitch gear：Easy to change the thread-pitch gear
and easy to operate as well.
The gear-drive thread pitch reduces wear to a minimum.
Equipped with safety stop device for upgrading operational safety.

◎ Because one running is for each tapping thread, it can taps perfect
thread’s rings to let the tap enlarge the using life time, the accuracy
gets the standard of the gauge, automatic tapping and retracting,
the workpiece won’t life, which does not require special hold-down
to simplify jig.

◎ Fast

◎ Saving time

◎ High precision

◎ Adjustment is simple

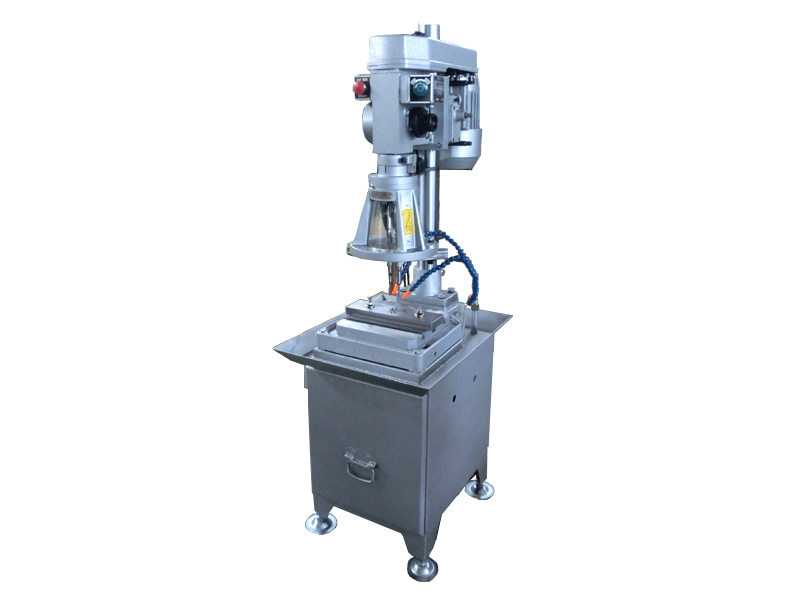

◎ Available to equip with multiple spindle drilling head for greatly
increasing efficiency.

◎ Easy of operation, Beginner difficulty of use.

◎ Operator freely leave the machine

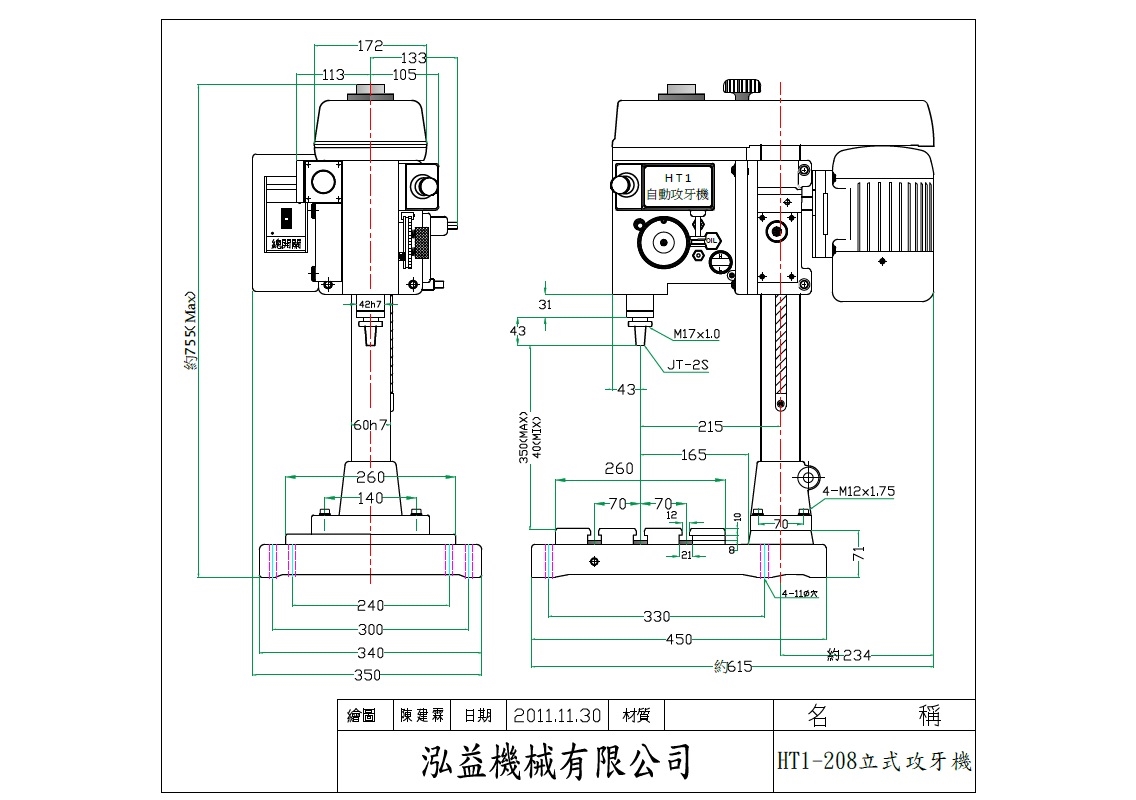

規格表 Specification

機種 Model		HT1-208
行程 Stroke(mm)		45
旋徑 Swing(mm)		330
能力 Capacity(mm)		φ2 - φ8
主軸端和台面距離 Spindle to table		350
工作台尺寸 Table size(LxW)		260 x 260
馬達 Motor		3 相 4P 1/2HP
主軸迴轉數 Speed	50Hz	1340	760	420
	60Hz	1600	900	500
本機器使用齒輪螺距 Machine uses the gear pitch	每英吋的牙數 Number of teeth per inch	64 56 48 40 32 28 24 20 18 16
	mm	0.2 0.25 0.3 0.35 0.4 0.45 0.5 0.6 0.7 0.75 0.8 0.9 1.0 1.25 1.5
多軸最大能力 m/m 標準 Max. number of spindles of the multiple spindle head		M3 x 10 軸
		M4 x 5 軸
		M5 x 2 軸
重量 Weight(Kg)		108
